Oversized Sand-Filled Flood Bag Barriers
Protect Your Property From Flood Damage
The Bag barrier is a unique flood control system that is ideal for protection of important property and infrastructure.
The Bag barrier is a concertina style, big bag, flood barrier consisting of a heavy duty oversized bag, divided into 5 distinct chambers. Use sand or other aggregate or fill material to fill bags and to create a heavy duty levee to hold back water.
Bags ship flattened on pallets, ready to be opened, positioned and filled on site. Each bag is 15ft long, 3ft deep, and 40” high and replaces approximately 750 standard sandbags. Because there’s no wasted space, Barriers use roughly 1/2 the amount of sand required for an equivalent sandbag barrier and significantly less labor to position and fill.
Bag barriers can be installed and filled by a relatively small crew and deployed quickly in advance of an expected flood.
Ships Flat
Conveniently shipped flat on pallets for easy transport to flood sites.

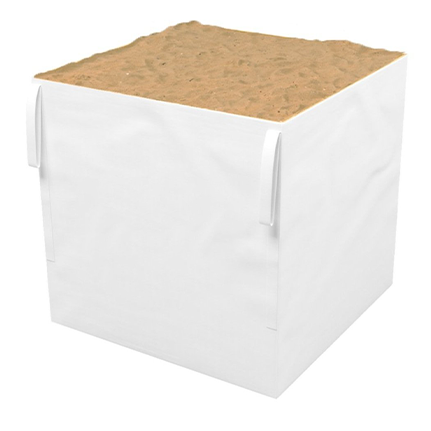

Sand-Filled
Filled with sand, gravel, cement or any applicable fill material.
Protection Height
Achieve 40” of heavy duty flood protection height when filled.
Specifications

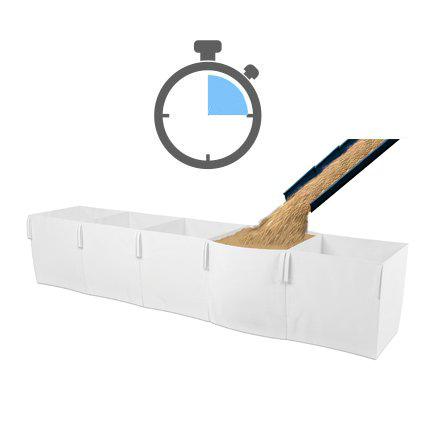

Deployment Speed
- Designed for easy deployment by unskilled labor
-
Each complete 5 chamber Beluga weighs only 50lbs
-
With proper filling equipment and 2 persons, expect to install a 100ft berm in approximately 2.5 hours.
Bag Capacity
-
Bags have a capacity of 30 cubic feet of sand per section x 5 sections = 150 cubic feet of sand per 5 compartment bag
-
4,500lbs (Safe Working Load) per chamber
-
22,500lbs (Safe Working Load) per 5 chamber system
Damming Ability
-
A single layer of Beluga Bags can withstand 3ft of water.
-

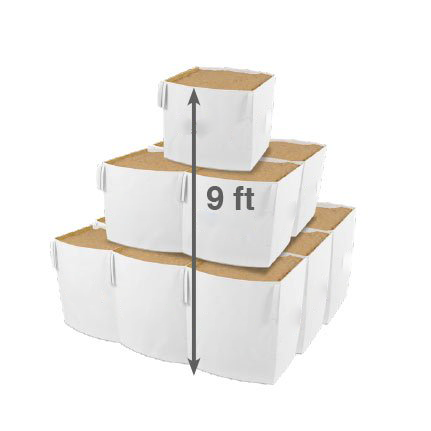

Stack multiple bags to create up to a 9ft high barrier (Engineer sign-off required for stacking).
-
Ground conforming design will contour to the surface below
-
Use on concrete, asphalt, sand, grass, mud and more

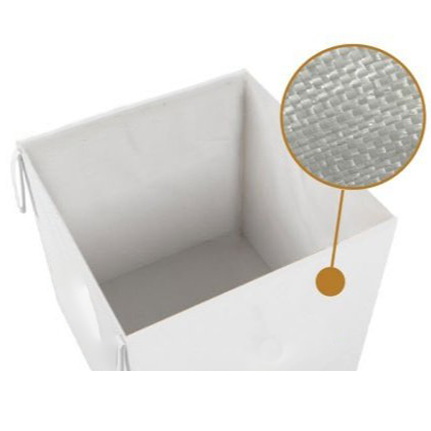

Material
-
5.6oz, coated (impermeable) polypropylene fabric on 1 side and an uncoated 5.0 oz (water permeable) fabric on the other sides (allowing slow water drainage)
-
100% Polypropylene, RIC Code 5, SPI Code PP
-
2200 Hour UV Protection
-
NAICS Code: 314910
